MOAB Traverse Elevator Bed

The MOAB Traverse is the centerpiece of our Traverse Sleep System, which allows you to sleep sideways and open up space in your van.

Starting at $3,250.00

  •

MOAB Traverse Elevator Bed

The MOAB Traverse is the centerpiece of our Traverse Sleep System, which allows you to sleep sideways and open up space in your van.

Starting at $3,250.00

Finish

  • Description

  • Features and Specs

  • Shipping

  • Installation

  • Traverse your sleep system and save space

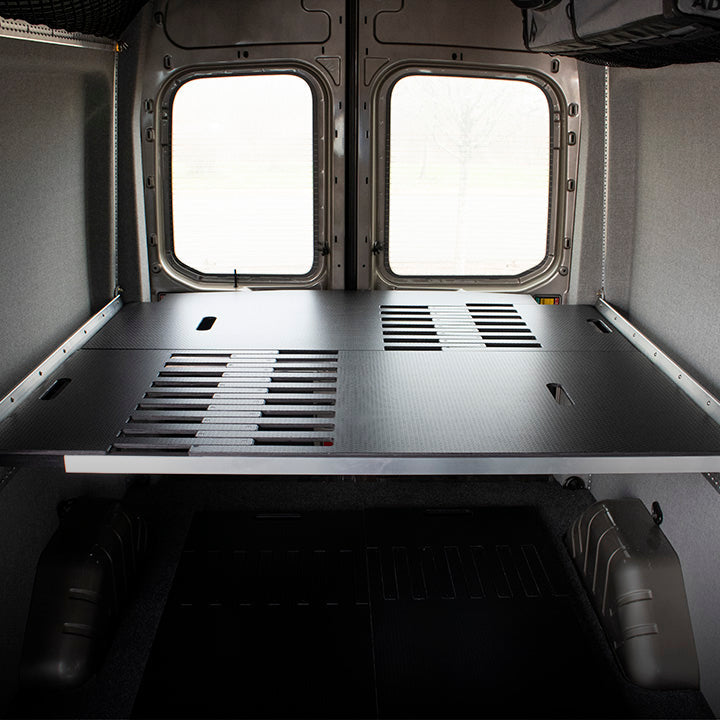

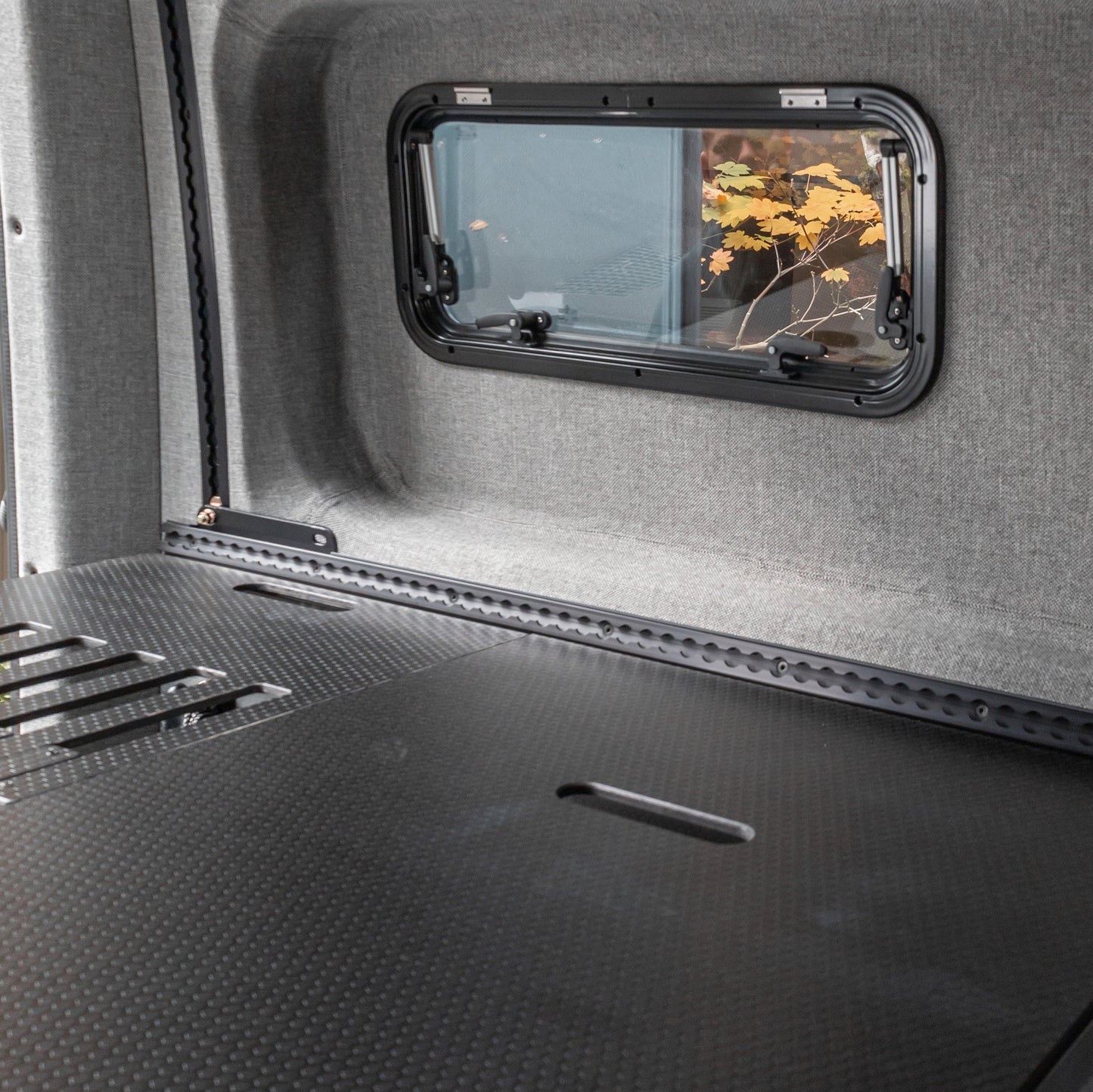

    A two panel version of our patented MOAB bed, the MOAB Traverse is the centerpiece of our Traverse Sleep System.  Flarespace flares with our internal flare panels in the Sprinter, or our Traverse wall panels in the Transit, create enough width in your van to sleep sideways. Pair that with a MOAB Traverse bed and mattress and create an extra 8 sq. feet in your van for storage, seating, or just moving around.



  • Features and Specs


    • Traverse sleep system maximum widths: Sprinter = 77"  Transit = 73.5"
    • Total length of assembled bed is 59.5" wide (front to back) at the bed center, and 67" long (side to side, varies with width of van).
    • Vertical L-track mounting system allows bed height to adjust from approximately 10.5" to 67.5" (from floor to bottom of bed).
    • Each panel is rated to support 200 lbs. for a total weight capacity of 600 lbs.
    • Adjustable-width panels expand/contract to meet the different widths inside the van and are held in place with pressure from a gas strut.
    • Panels lock in place to prevent accidental removal.

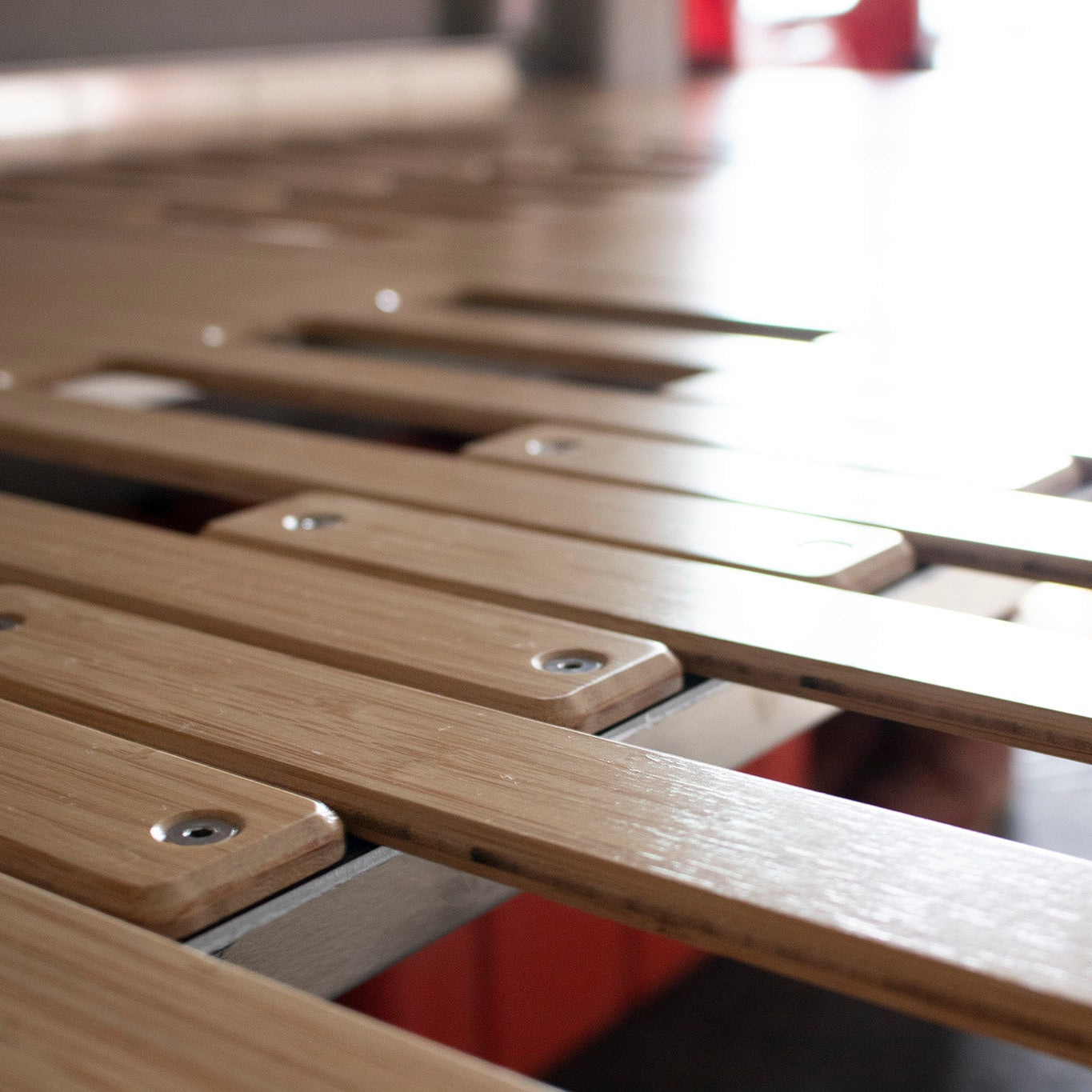

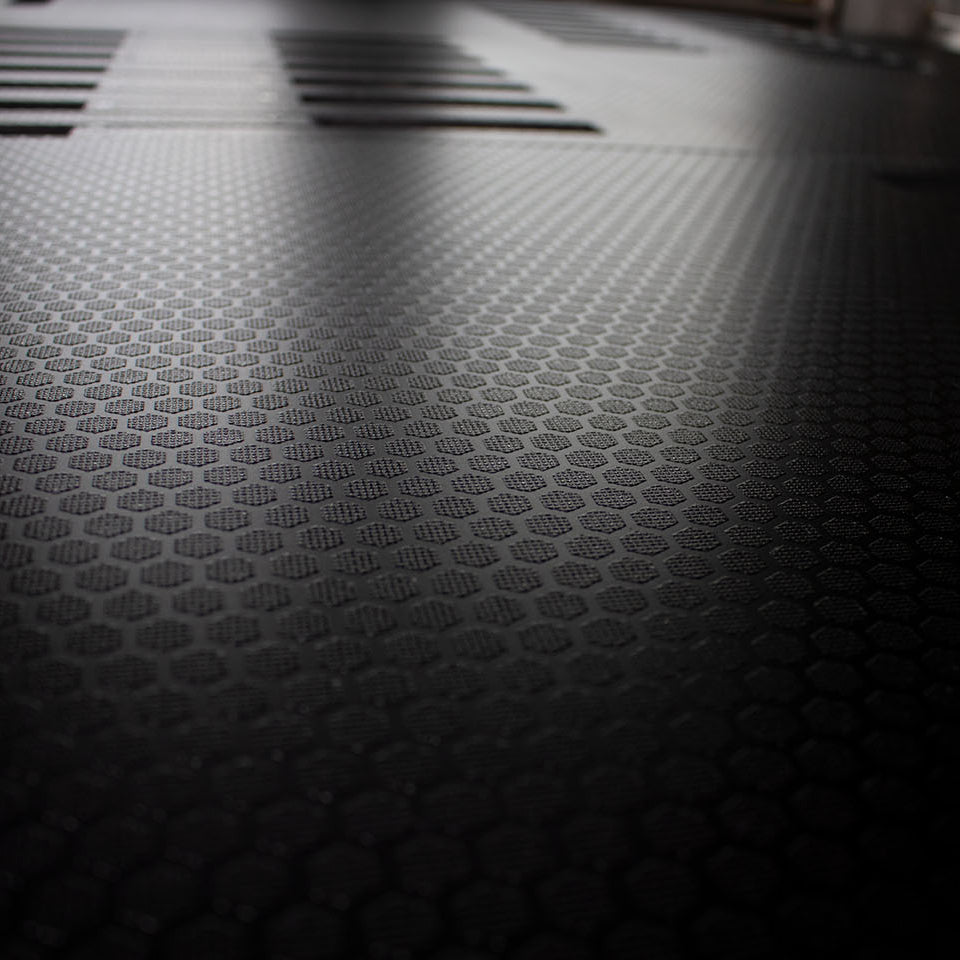

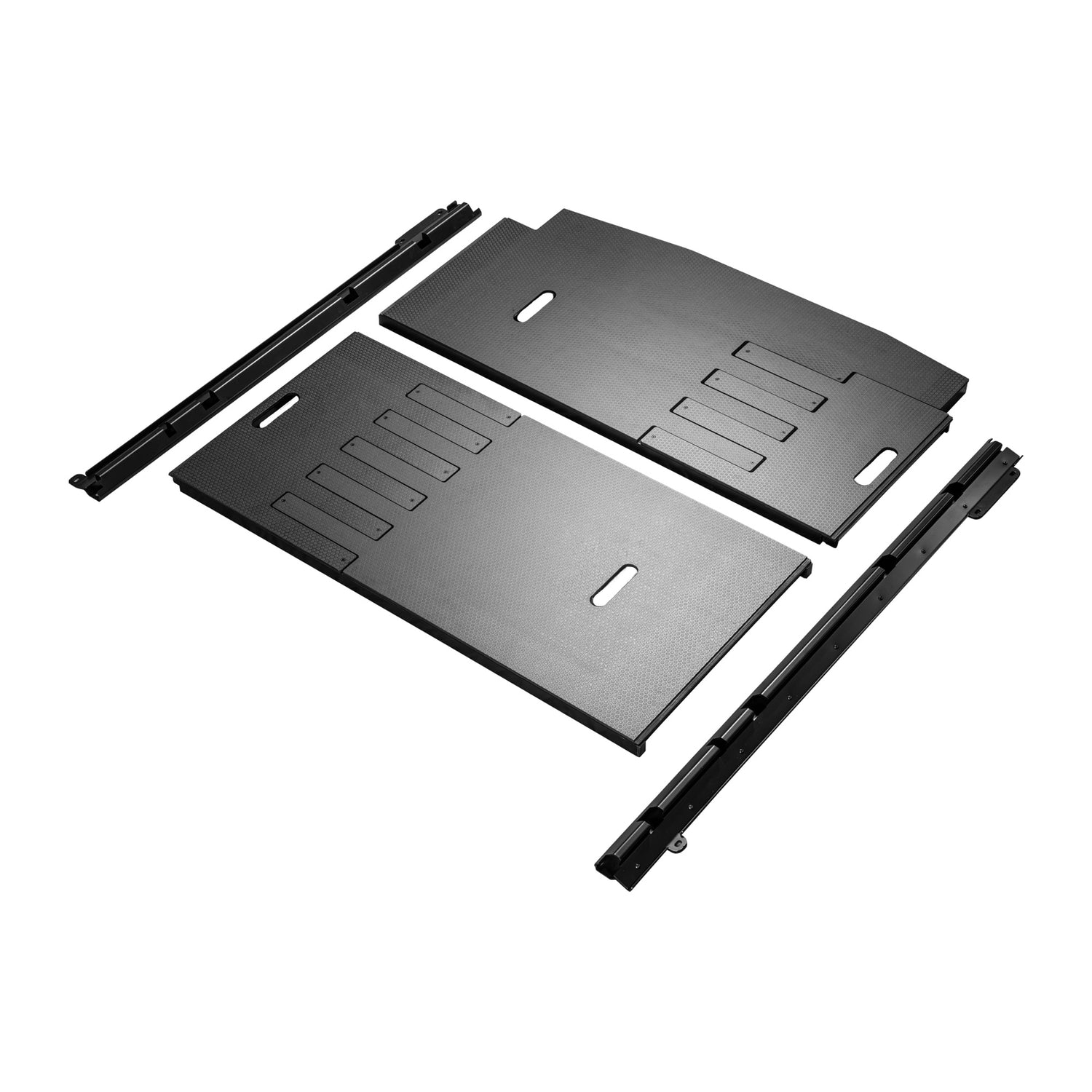

    • Platform available in a vertical carbonized bamboo with satin finish, or black hex laminate.
    • Frame comes in bare aluminum or black anodized.

  • Shipping

    Beds will ship on a large pallet and must be shipped via truck freight due to size and weight. It is recommended that your order be shipped to a business with a loading dock and/or fork lift to minimize the shipping cost. If special delivery services such residential delivery or lift gate are needed, additional charges will be incurred. Orders can also be picked up at our facility with advanced scheduling.

    Usually ships within 20 days (subject to change)

    Contact us at info@adventurewagon.com for international orders.

  • Installation

    Compatibility

    • 2007-current Mercedes-Benz Sprinter van model 144 & 170
      • Sprinter high roof or low roof in either cargo, crew, and passenger versions
    • 2015-current Ford Transit vans 148" wheel base
      • High roof > cargo > long and extended models

    Installation & Install Kit Options

    • If you have installed or are planning to install the Modular Interior System with your MOAB, no additional parts are required. Select "none" for you install kit.
    • If you're planning on installing just the bed, you will need to purchase one of our bed install kits, which consist of wall bracers and L-track.

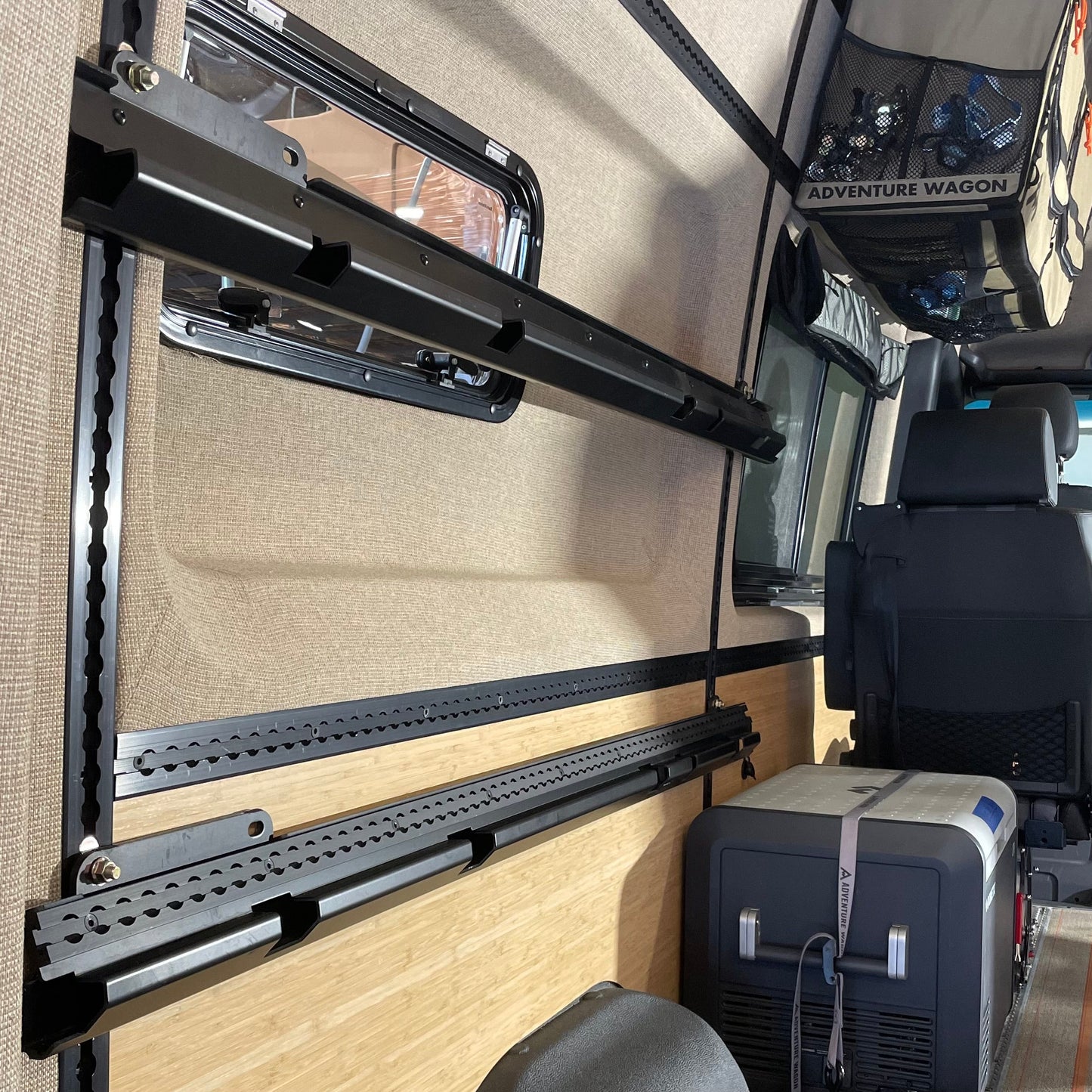

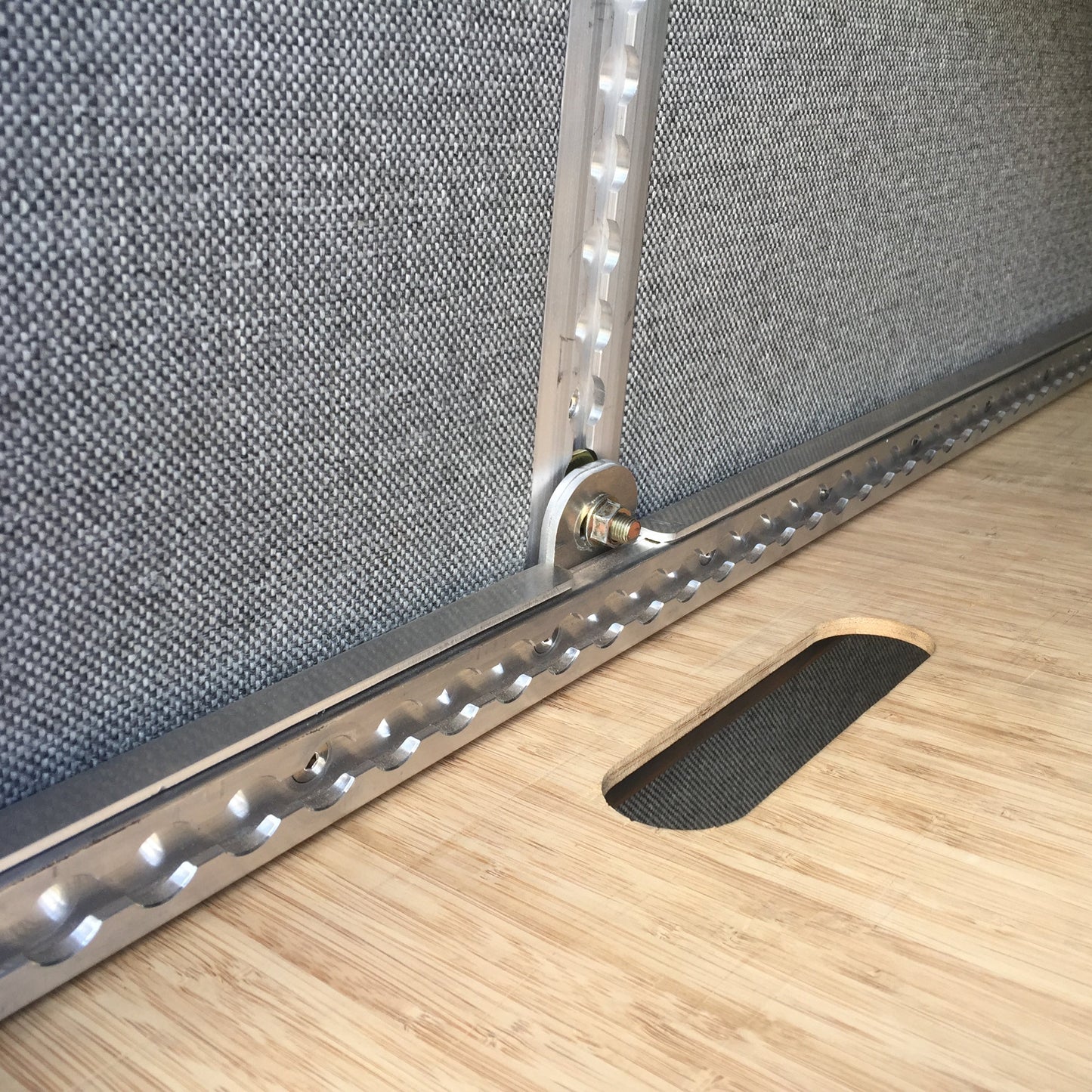

    • Each kit requires drilling into and securing steel wall bracers to the van interior wall. L-track bolts to the steel bracers, and the bed rails mount to the L-track.
    • Bed Mounting - Once the wall brackets and track are installed, the bed rails will mount to the L-track and the bed panels then easily click into place.
    • Installation Kit Options:
      • Bed Install Kit V2 - Adventure Wagon's best, most flexible, installation option that allows floor-to-ceiling height adjustment, Flarespace compatibility, and enables future upgrade to our complete Modular Interior System.
      • Bed Install Kit V1 - Best for installation in passenger or crew vans where you want to re-use your OEM interior panels. It also works in low-roof models.
