Introducing the Switchback Electrical System—a streamlined, high-performance power solution built for life on the move. Engineered around the EcoFlow 48V platform, it delivers robust off-grid capability in a compact design tailored for modern camper vans.

At the core is EcoFlow’s integrated 5-in-1 Power Hub, combining a DC/DC charger, DC/DC converter, dual MPPT solar charge controllers, and an AC/DC inverter into a single streamlined unit. Paired with a 30/50A AC/DC smart distribution panel and LFP battery options (5kVA or 10kVA), the system supports up to 11kW of total charging input—up to 4800W solar, 6000W alternator, and 4000W shore power. The result is faster charging, greater efficiency, and seamless power management whether you’re driving, plugged in, or fully off-grid.

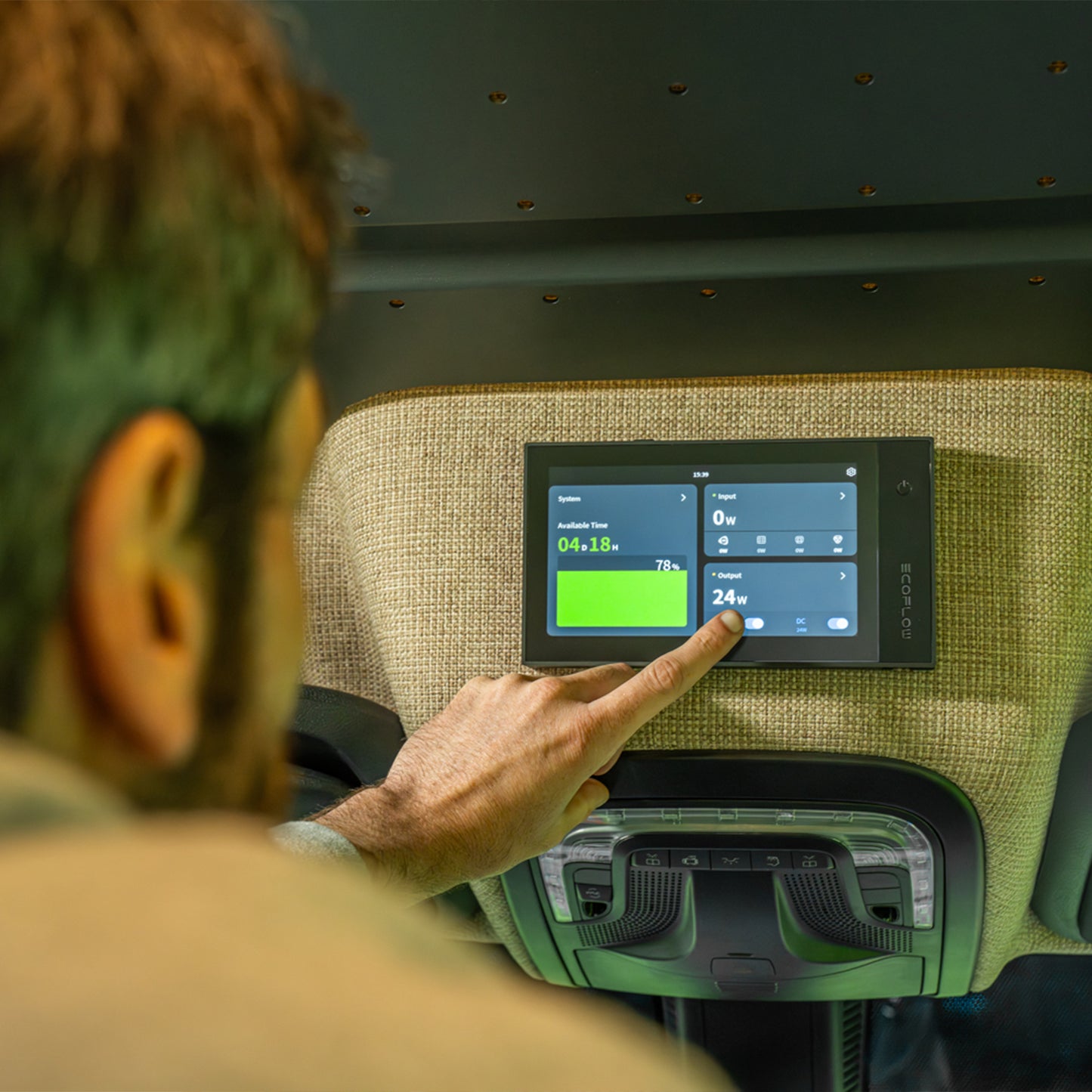

Designed to support a wide range of systems, it's optimized for high-efficiency 48V units—enabling off-grid air conditioning for up to 8 hours depending on conditions. Real-time system monitoring and control are available through the EcoFlow Power Kit Console or mobile app, giving you full visibility and control from anywhere.

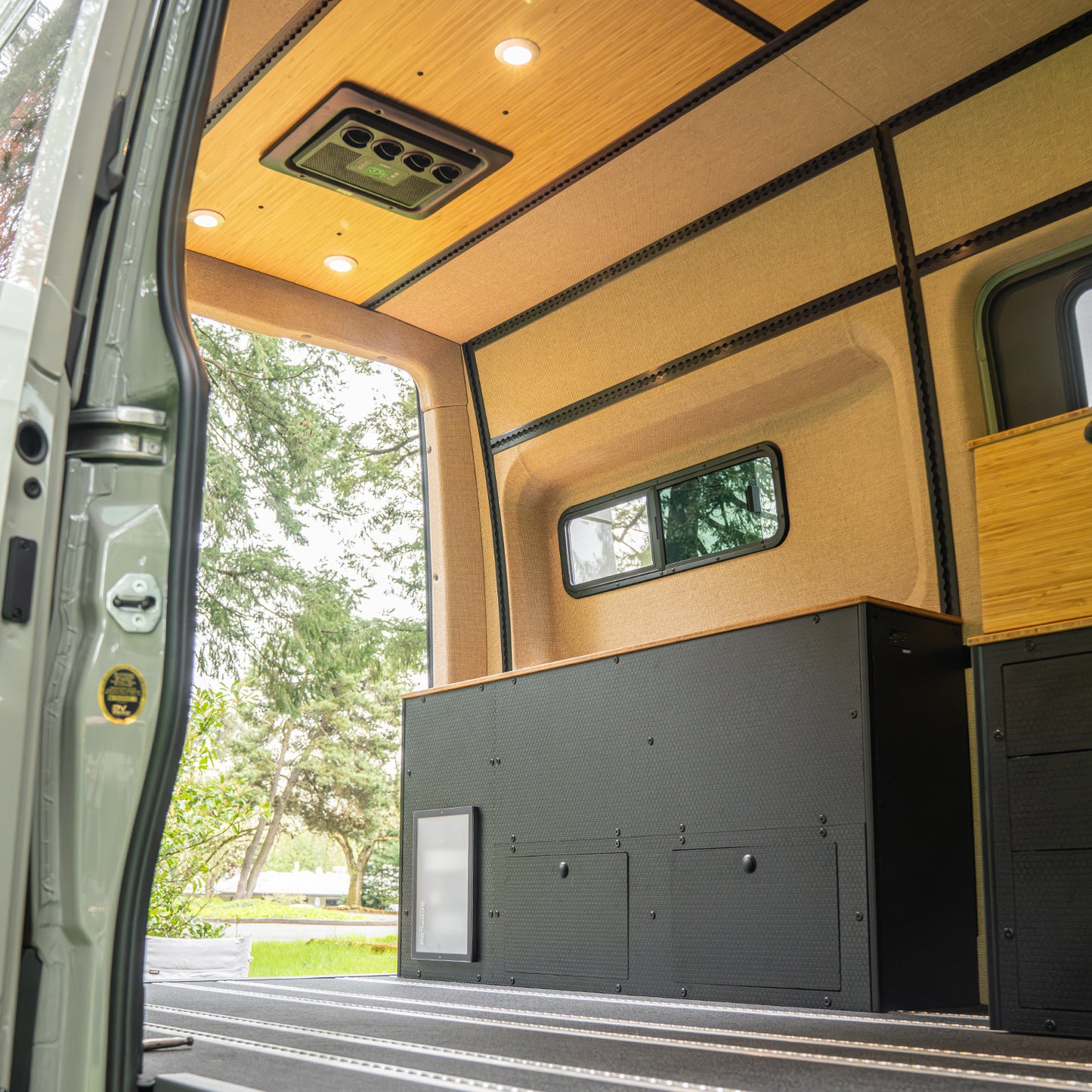

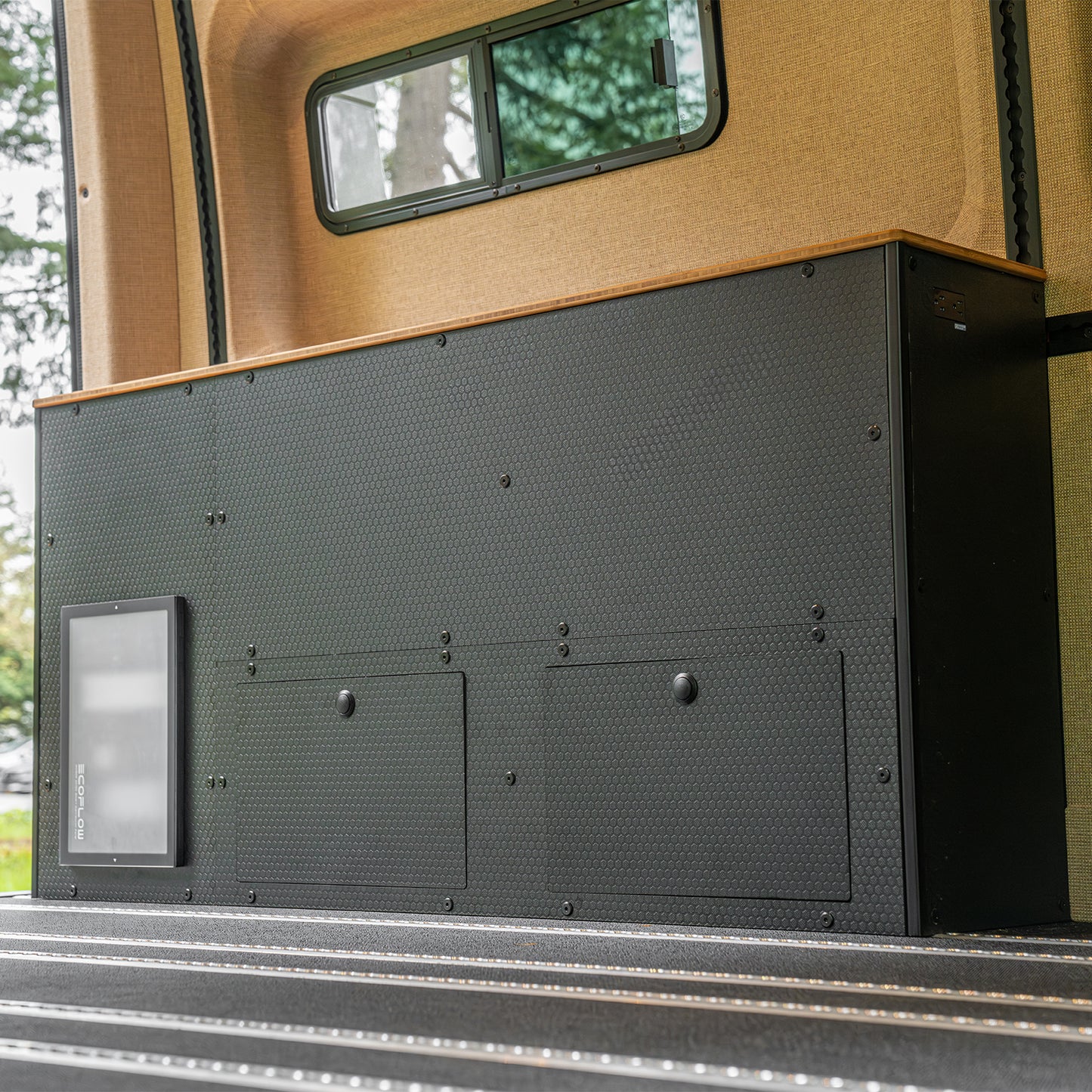

The entire system is built around a slim, wheel-well-integrated form factor that minimizes intrusion into your living space while adding usable storage. Constructed from steel and aluminum, it’s engineered for durability and safety—avoiding the limitations of traditional wood cabinetry in mobile environments.

Available in 5kVA (400Ah equivalent) and 10kVA (800Ah equivalent) configurations, the Switchback Electrical System is plug-and-play for simplified installation and serviceability. It’s fully RVIA-certified and designed to integrate seamlessly with the Switchback product line—delivering a cohesive, future-ready electrical solution for Adventure Wagon builds.

Currently available for Sprinter 144 models, with additional platform compatibility coming soon.

OVERVIEW

• Built around EcoFlow 48V Power Kit platform
• Available in 5kVA (400Ah equivalent) and 10kVA (800Ah equivalent)
• Designed for off-grid van power and extended runtime
• Capable of running a 48V air conditioner for up to ~8 hours depending on conditions
• RVIA-certified system for compliant, financeable builds

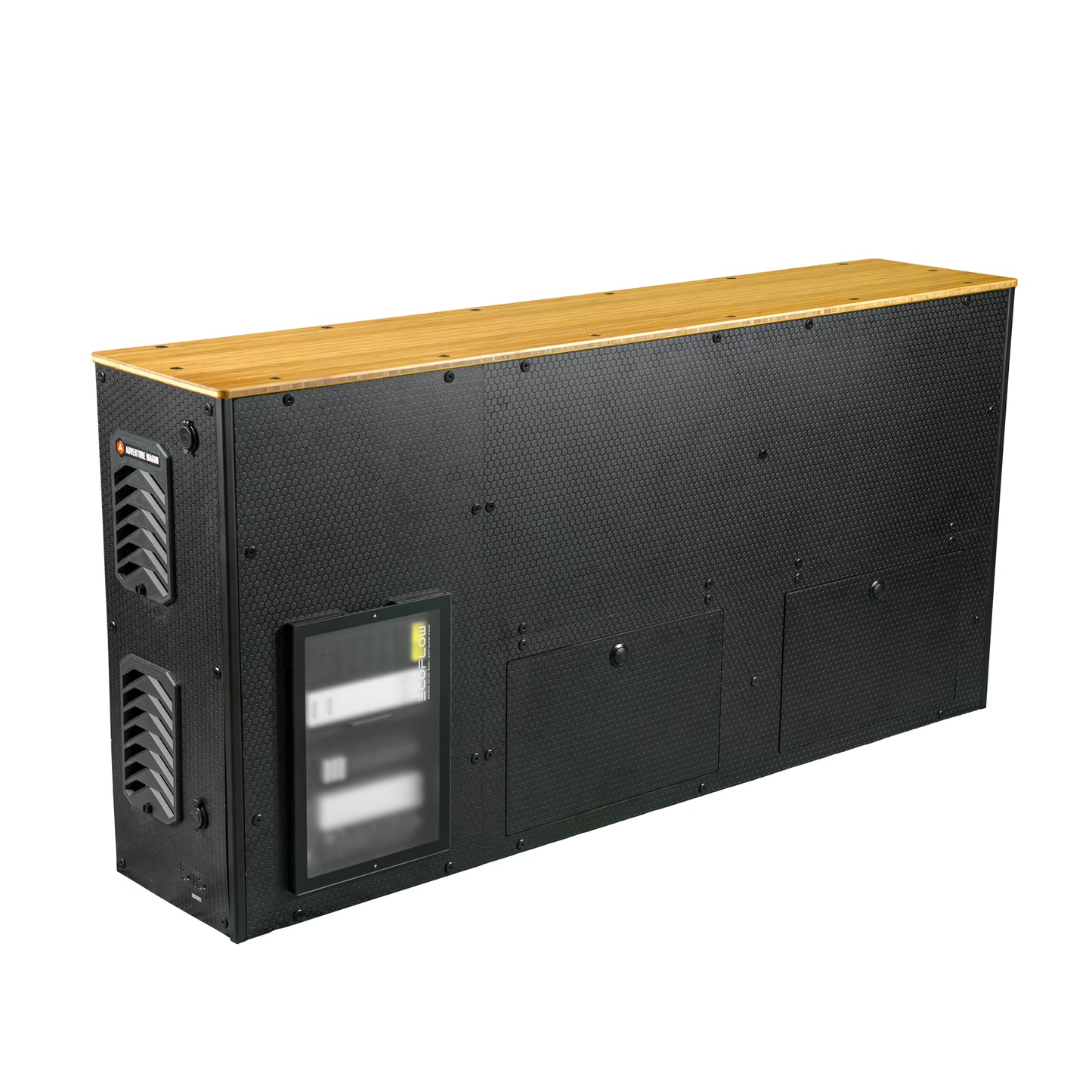

• Overall Dimensions: 30 ½" Tall x 63 ¼" Wide x 13" Deep

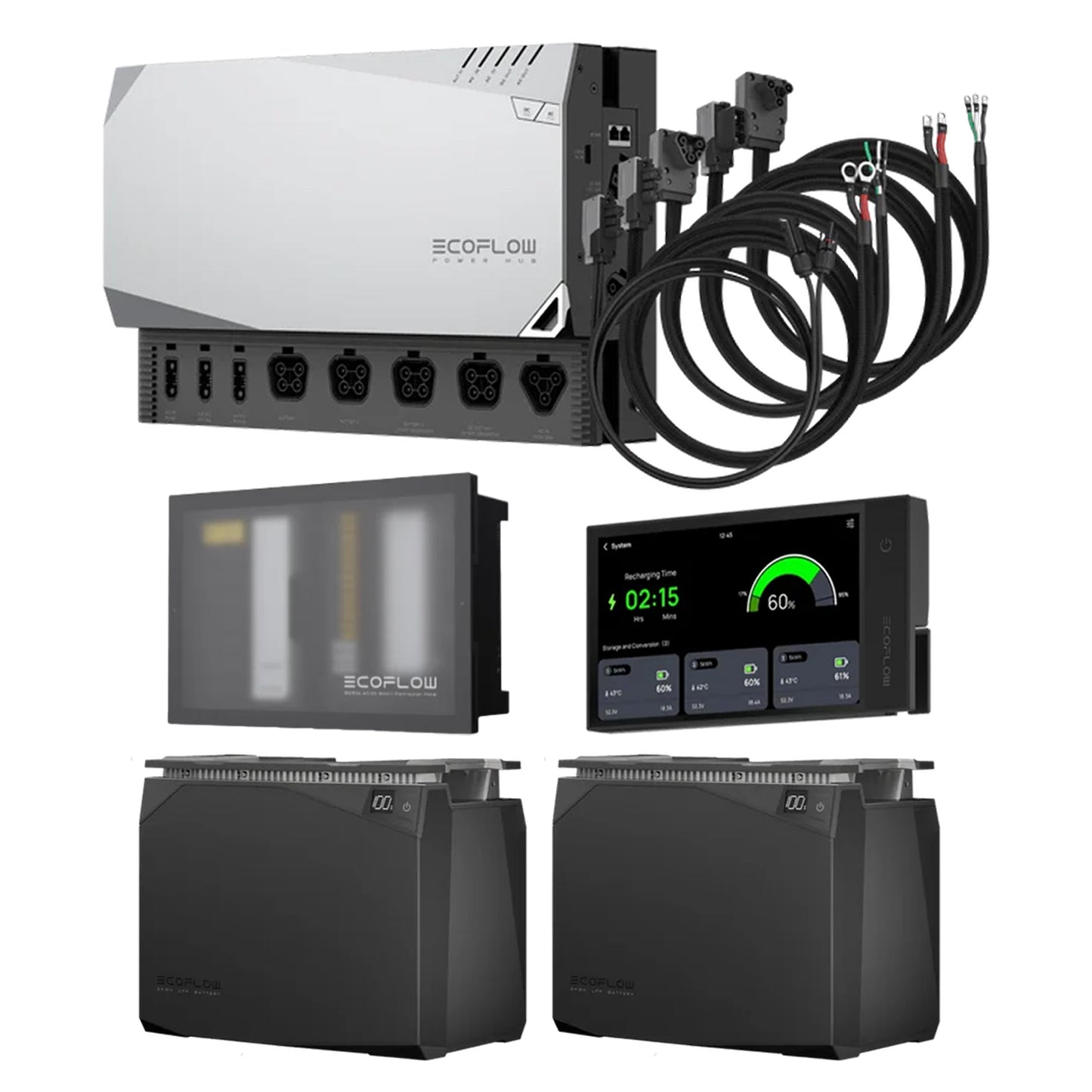

CORE COMPONENTS

• LFP (LiFePO4) battery system
• EcoFlow 5kVA Power Hub (5-in-1 integration)

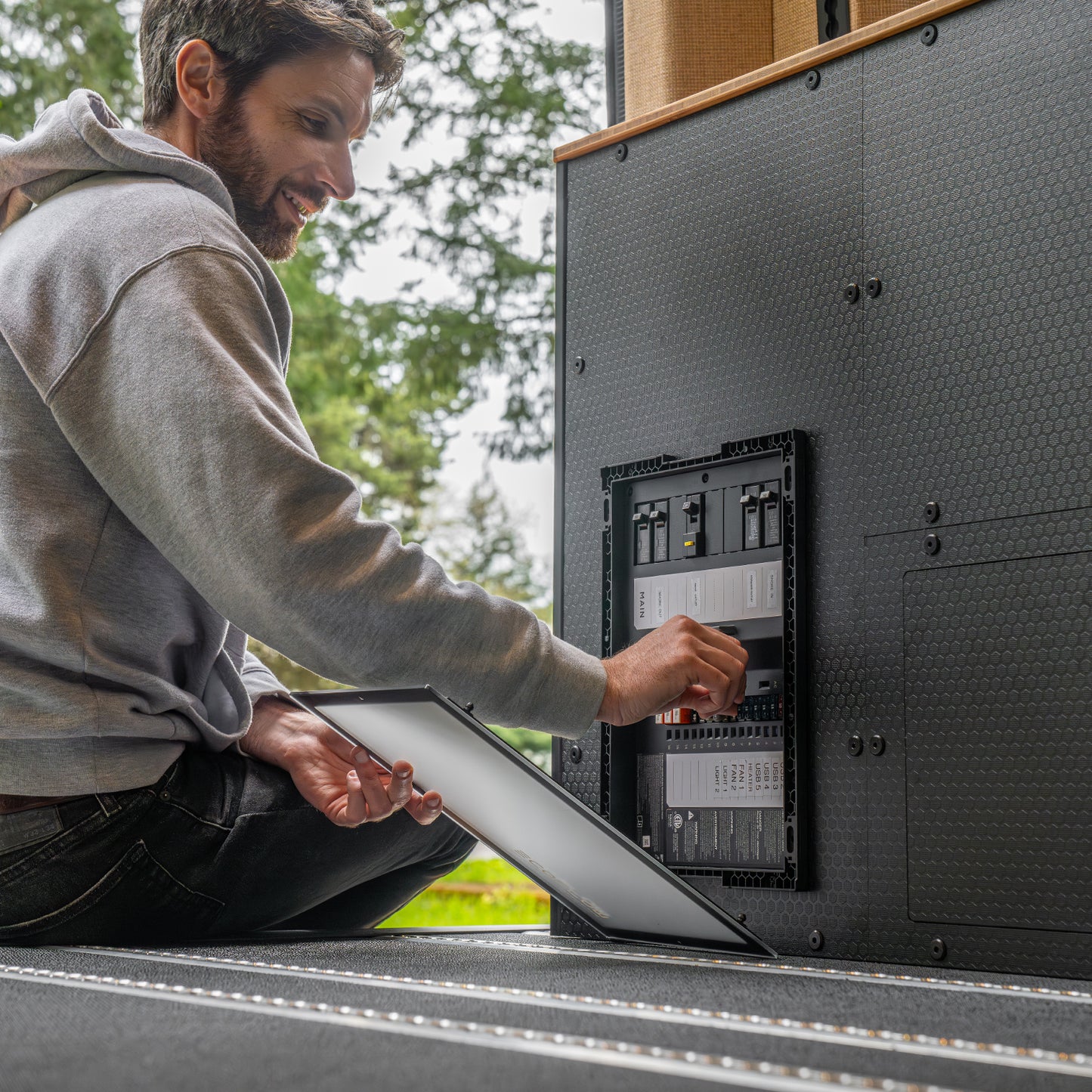

• 30/50A AC/DC Smart Distribution Panel
• Power Kit Console for system control and monitoring

POWER & CHARGING CAPABILITIES

• Up to 11kW total charging input across four sources:
  • Solar: up to 4800W
  • Alternator: up to 6000W
  • Shore power: up to 4000W
  • Smart generator: up to 3200W
• Simultaneous multi-source charging supported
• High-efficiency 48V architecture for reduced current and heat

INTEGRATED POWER HUB

• DC/DC charger
• DC/DC converter
• Dual MPPT solar charge controllers
• AC/DC inverter
• Compact, space-saving design with fewer components

AIR CONDITIONING UPGRADE (OPTIONAL)

Velit 2000R Mini Rooftop A/C (12V/48V)

• 6500 BTU (12V) / 7500 BTU (48V) cooling capacity
• Low power draw: as low as 5A (48V)
• Eco mode: 250–300W | Turbo: 400–650W
• Low-profile rooftop design
• Quiet operation: 45dB (eco) / 58dB (boost)
• Standard 14" x 14" roof cutout
• Flush-mount interior vent (black panel)
• Weight: 61 lbs

DESIGN & BUILD

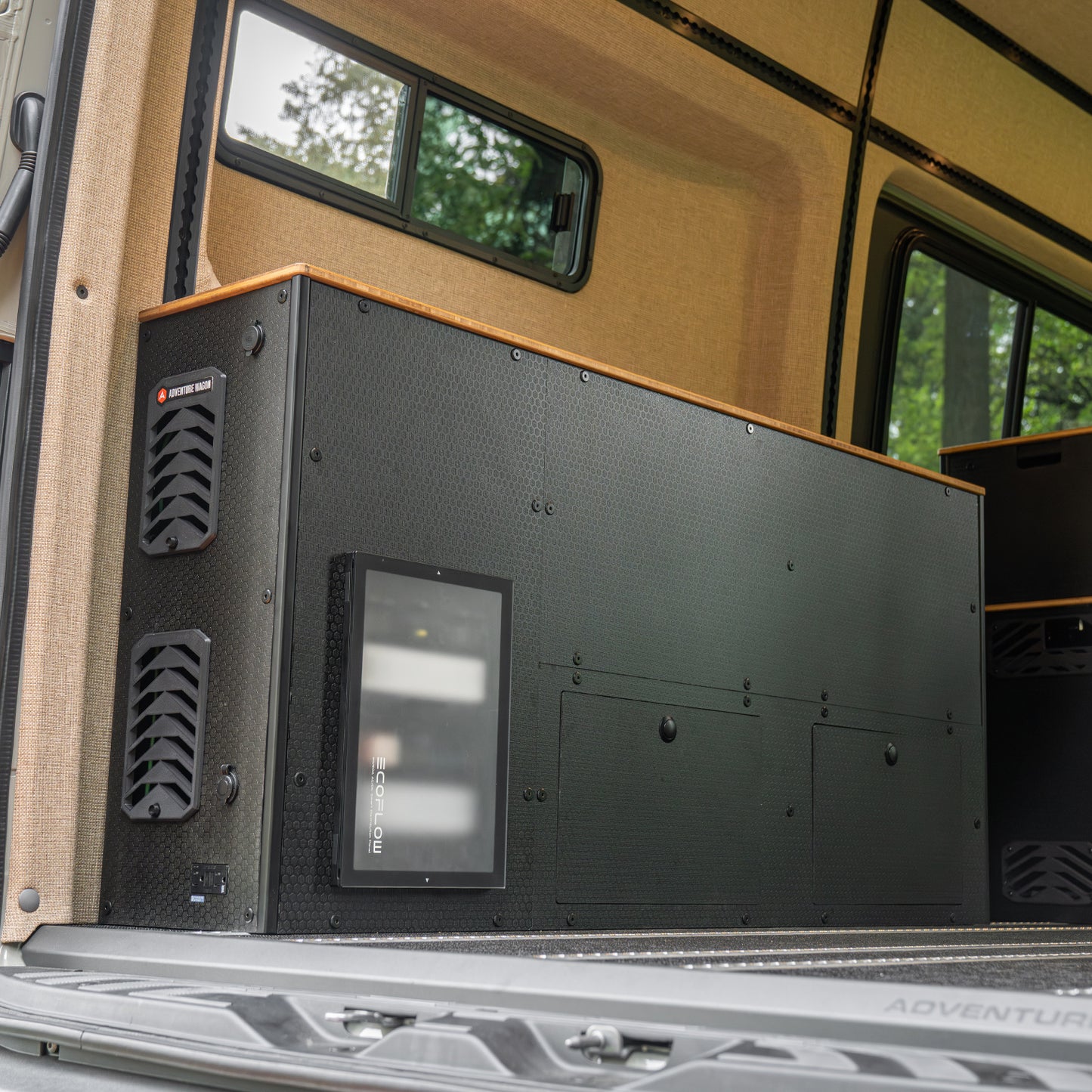

• Wheel-well-integrated layout for space efficiency
• Slim profile minimizes impact on usable floor space

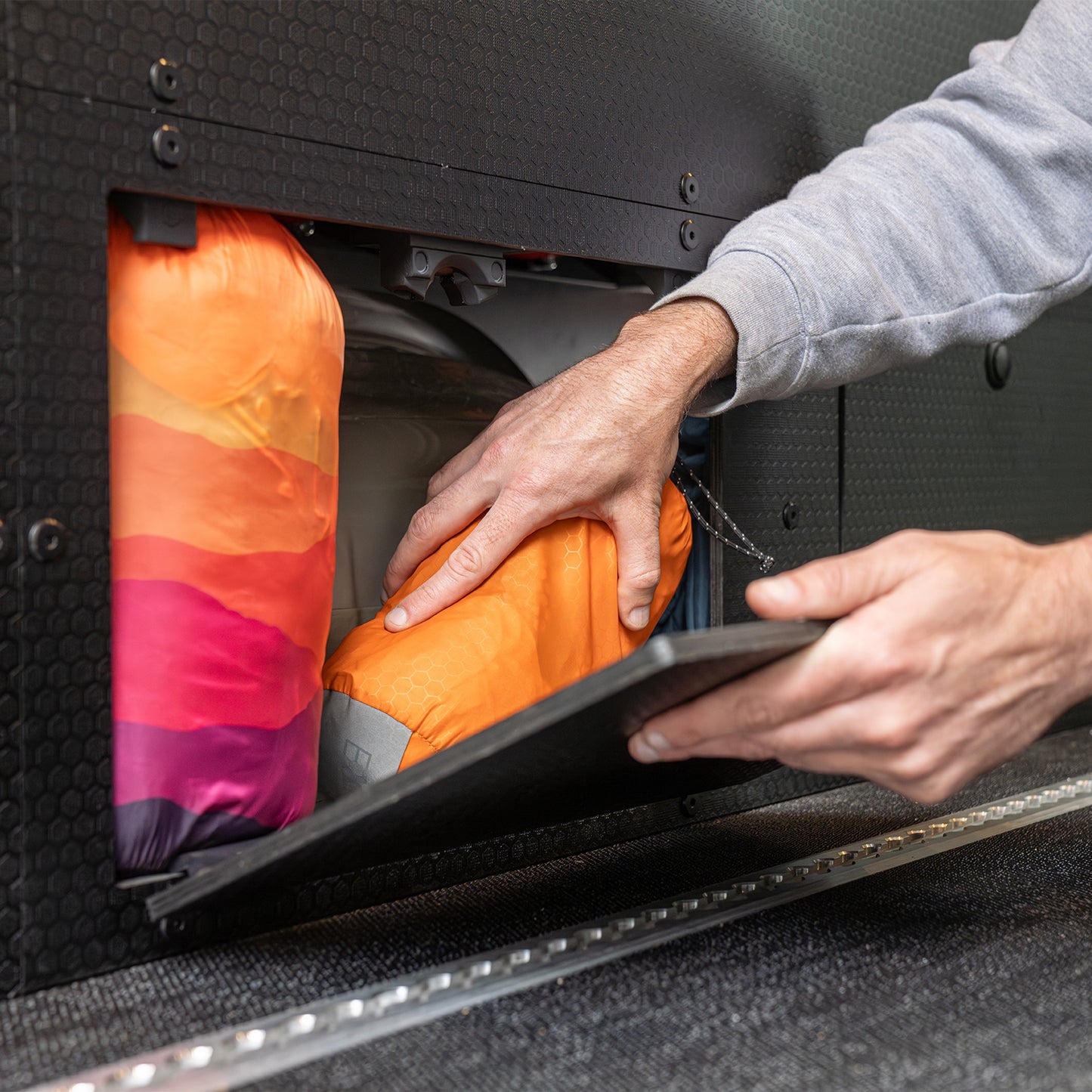

• Added storage around wheel wells
• Constructed from steel and aluminum for strength and safety
• Designed to match the Switchback system aesthetic
• Black Hexaply Side Panels

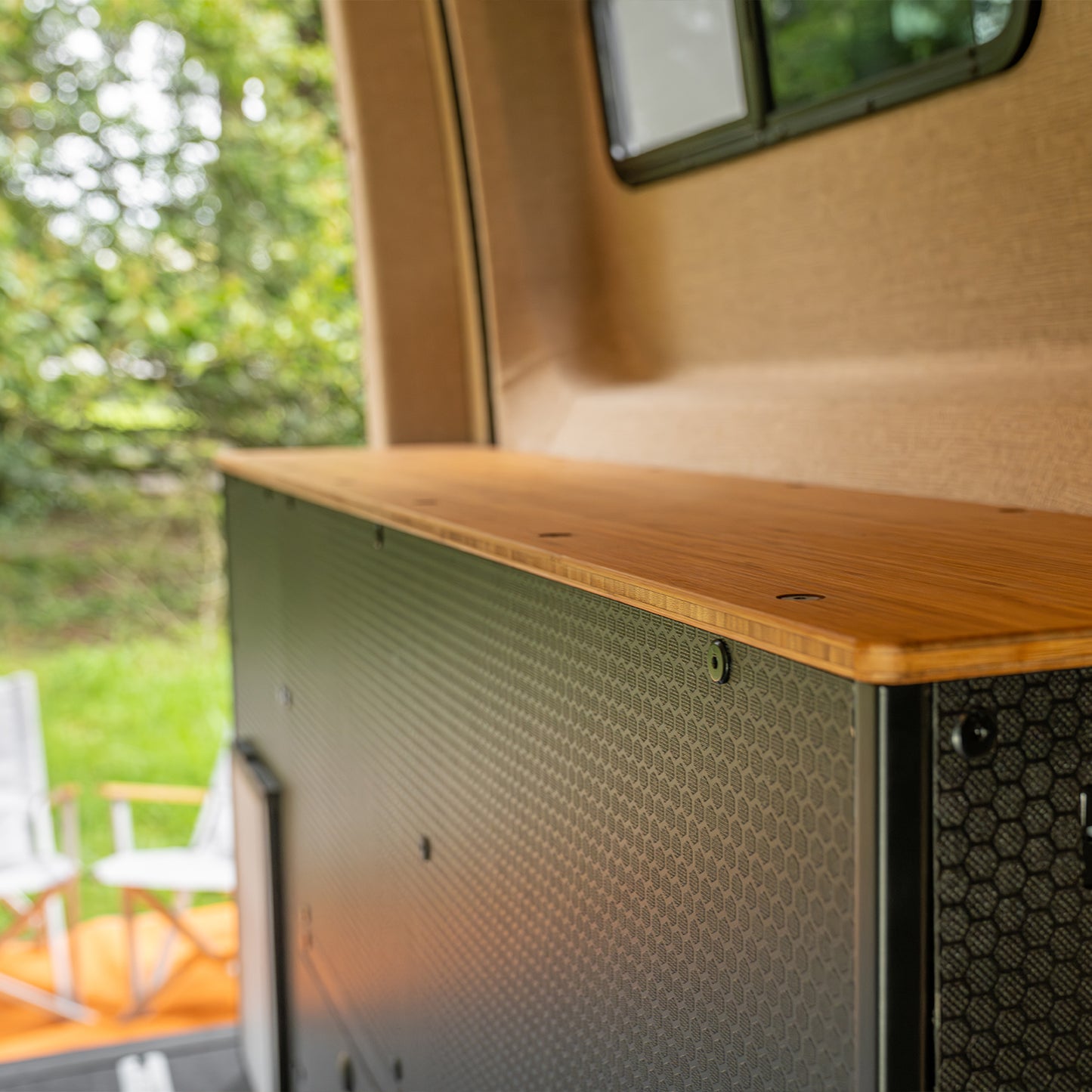

• Bamboo counter top
• Additional side panel options coming soon

COMPATIBILITY

• Adventure Wagon installation only
• Initial release for Sprinter 144
• Additional compatibility (THL, THX, S170) coming soon

AVAILABLE WITH FACTORY INSTALL ONLY

AVAILABLE WITH FACTORY INSTALL ONLY
